Milling units F070P-A

SKU: 04140902

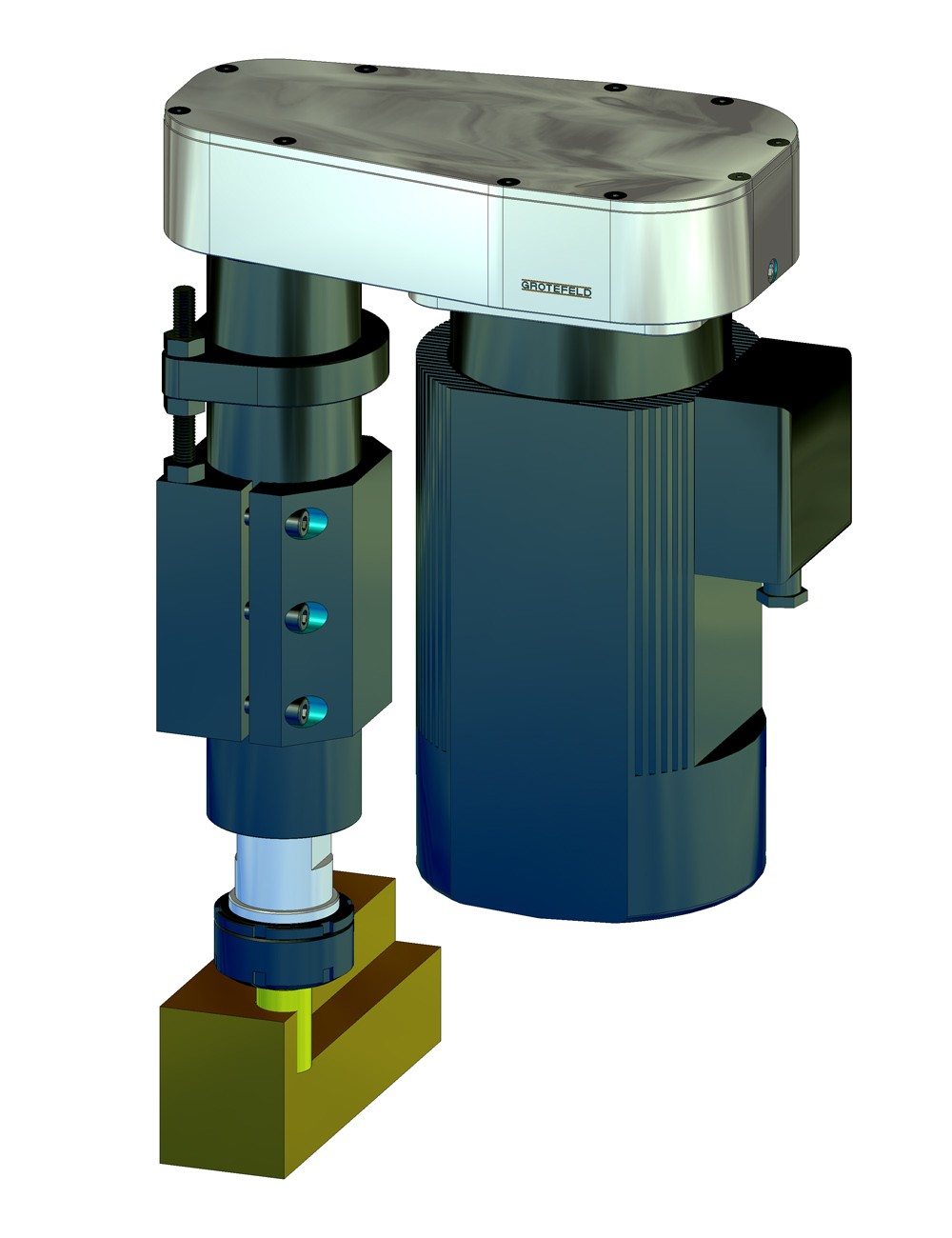

The GROTEFELD milling spindles of the series F070 are units without own feed. To get the required processing stroke, for example, the units can be mounted on cross slides or machine axes. The mounting takes place over an integrated clamping element.

The variant F070P-A has a collet receptacle Hi-Q/ER40. The motor is in addition to the spindle.

These units are suitable for working with wood, plastic, aluminum and steel. Depending on the gear ratio speeds from 1.400 - 8.400 1/min are available.

For fine adjustment in axial direction it is possible to supply the unit with an adjusting spindle JS70.

Note: The motors are designed for the use with a frequency converter.



Variants

Motor kW Motor speed 1/min Spindle speed 1/min Item Id.
2,8 2.800 8.400 04140902
2,8 2.800 5.600 04140903
2,8 2.800 2.800 04140904
2,8 2.800 1.400 04140905

More variants on demand!
