Angular heads G19-1.1-B

SKU: F03-13121801

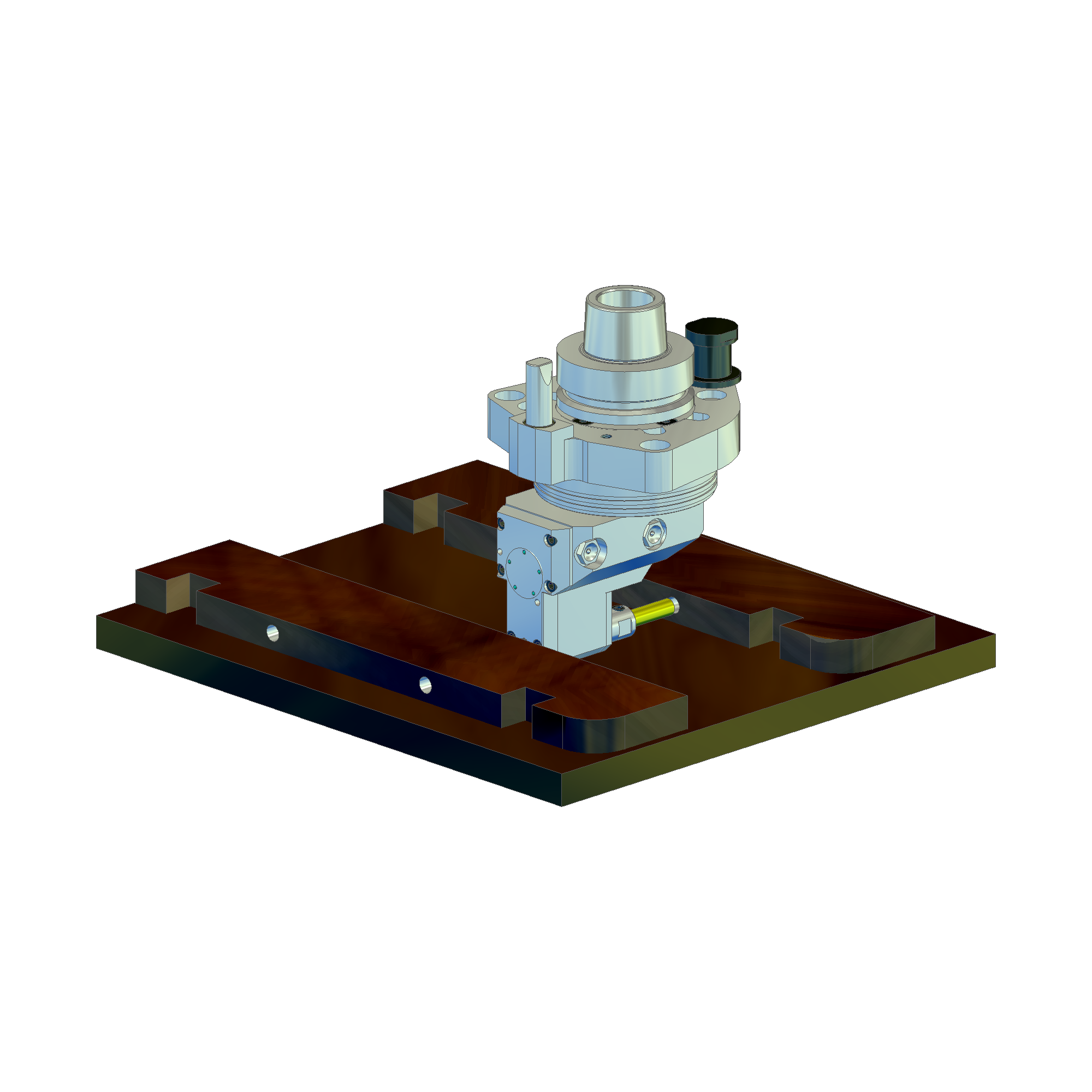

The angular heads of the series G19 are used for drilling the sides of workpieces. The special feature is the very slight profile of just 7.5 mm from the bottom of the unit to the middle of the drill bit holder. This makes it, for example, possible to drill parts laterally that are manufactured in the nesting process directly after milling.
The housing width in the area of the drilling receptacle is only 24mm.

The drive speed is transferred in a ratio of 1:1,99 to the tool receptacles. The maximum spindle speed is 8.000 1/min.


Variants on demand!
